ATTINY13V-10PU

ATTINY13V-10PU

• package: DIP-8
• Brand : ATMEL
• High Performance, Low Power AVR® 8-Bit Microcontroller • Advanced RISC Architecture

  – 120 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers
  – Fully Static Operation
  – Up to 20 MIPS Througput at 20 MHz

  • High Endurance Non-volatile Memory segments
  – 1K Bytes of In-System Self-programmable Flash program memory
  – 64 Bytes EEPROM
  – 64 Bytes Internal SRAM
  – Write/Erase cyles: 10,000 Flash/100,000 EEPROM
  – Data retention: 20 years at 85°C/100 years at 25°C (see page 6)
  – Programming Lock for Self-Programming Flash & EEPROM Data Security

  • Peripheral Features
  – One 8-bit Timer/Counter with Prescaler and Two PWM Channels – 4-channel, 10-bit ADC with Internal Voltage Reference
  – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator

  • Special Microcontroller Features
  – debugWIRE On-chip Debug System
  – In-System Programmable via SPI Port
  – External and Internal Interrupt Sources
  – Low Power Idle, ADC Noise Reduction, and Power-down Modes – Enhanced Power-on Reset Circuit
  – Programmable Brown-out Detection Circuit
  – Internal Calibrated Oscillator

  • I/O and Packages

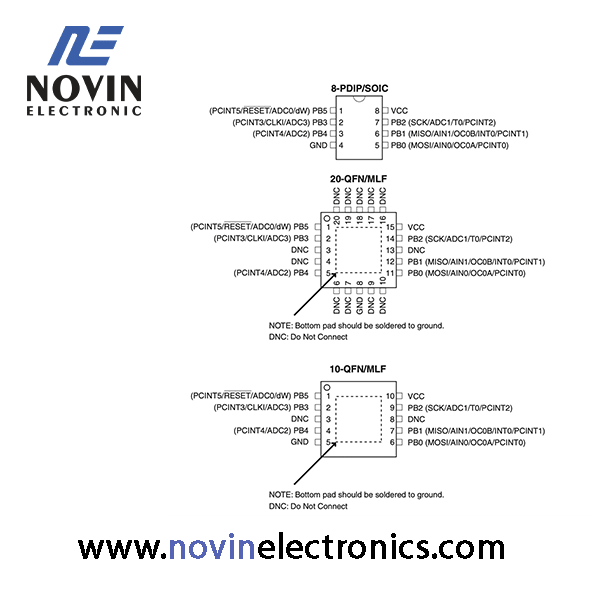

  – 8-pin PDIP/SOIC: Six Programmable I/O Lines – 20-pad MLF: Six Programmable I/O Lines

  • Operating Voltage:
  – 1.8 – 5.5V for ATtiny13V – 2.7 – 5.5V for ATtiny13
