CA3183AE

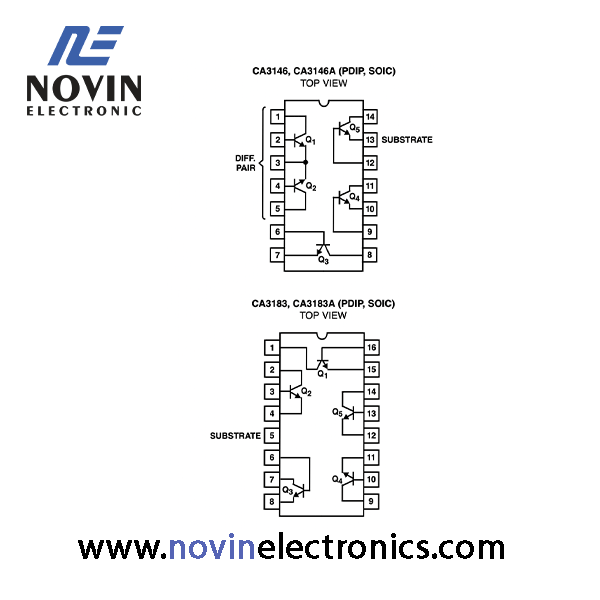

The CA3146A, CA3146, CA3183A, and CA3183 are general purpose high voltage silicon NPN transistor arrays on a common monolithic substrate.Types CA3146A and CA3146 consist of five transistors with two of the transistors connected to form a differentially connected pair. These types are recommended for low power applications in the DC through VHF range. (CA3146A and CA3146 are high voltage versions of the popular predecessor type CA3046.) Types CA3183A and CA3183 consist of five high current transistors with independent connections for each transistor. In addition two of these transistors (Qi and 02) are matched at low current (i.e., 1 mA) for applications where offset parameters are of special importance. A special substrate terminal is also included for greater flexibility in circuit design. (CA3183A and CA3183 are high voltage versions of the popular predecessor type CA3083.) The types with an “A” suffix are premium versions of their non-“A” counterparts and feature tighter control of breakdown voltages making them more suitable for higher voltage applications. For detailed application information, see companion Application Note AN5296 “Application of the CA3018 Intenraterl Circuit TransiRtnr Array” .
