-package: DIP-24
-Brand : SONY
Fast access time:
CXK581000ATM/AYM/AM/AP (Access time)
-55LL/55SL 55ns (Max.)
-70LL/70SL. 70ns (Max.)
-10LL/10SL. 100ns (Max.)
Low standby current:
CXK581000ATM/AYM/AM/AP
-55LL/70LL/10LL. 20μA (Max.)
-55SL/70SL/10SL. 12μA (Max.)
Low data retention current
CXK581000ATM/AYM/AM/AP
-55LL/70LL/10LL. 12μ A (Max.)
-55SL/70SL/10SL. 4μ A (Max.)
• Single +5V supply: +5V ±10%
• Low voltage data retention: 2.0V (Min.)
• Broad package line-up
• CXK581000ATM/AYM
8mm × 20mm 32 pin TSOP package.
• CXK581000AM 525mi1 32 pin SOP package
• CXK581000AP 600miI 32 pin DIP package

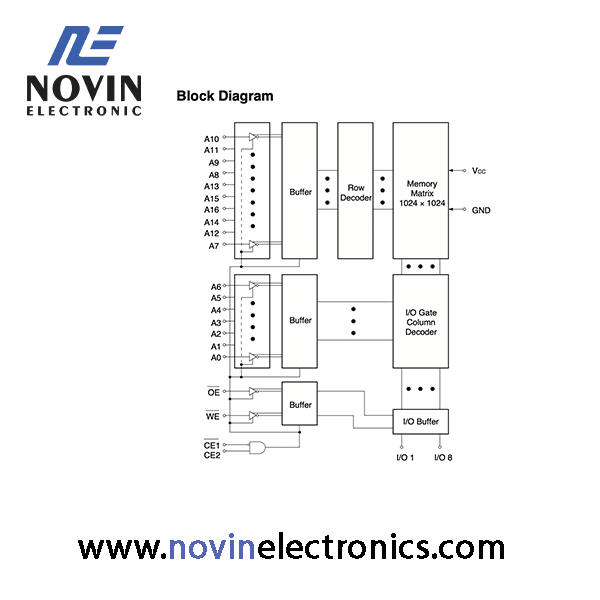

The CXK581000ATM/AYM/AM/AP is a high speed CMOS static RAM organized as 131072-words by 8 bits.
A polysilicon TFT cell technology realized extremely low stand- by current and higher data retention stability.
Special feature are low power consumption, high speed and broad package line-up.
The CXK581000ATM/AYM/AM/AP ia a suitable RAM for portable equipment with battery back up.
