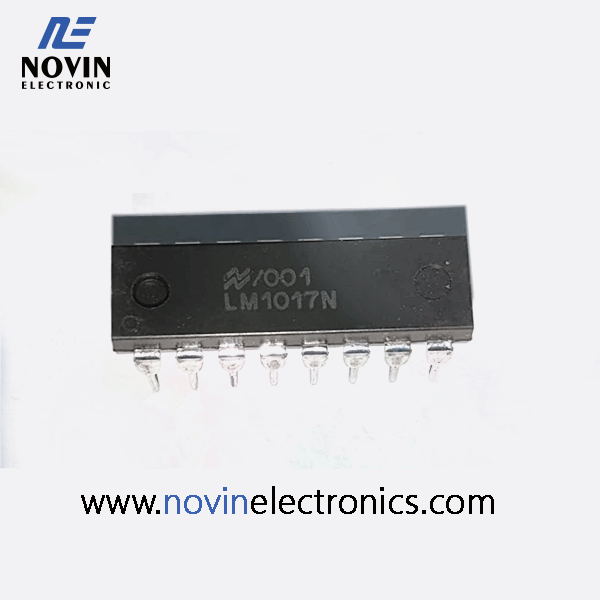

package: DIP-16
NATIONAL
■ A direct replacement for SN29764 but with 12V supply capability
■ TTL compatible inputs with high input voltage immunity
■ Channel displays are from 1 to 16
■ Current-driven output stages for LEDs protect against excess thermal dissipation
■ Continuously variable brightness control
■ Low stand-by quiescent current supply consumption
■ Suitable for NSN583 0.5 inch LED display
■ Inputs are suitable for direct drive from MOS outputs
The LM1017 is a monolithic IC which decodes 4-bit “binary plus one” coded input signals and supplies 1 1/2-digit TV channel display information. The outputs are designed to drive a 7-segment common cathode LED display with up to 25 mA depending on thermal dissi-pation requirements. Improvements in circuit design enable the device to operate from 5V to 12V supply. A brightness control facility is included.
