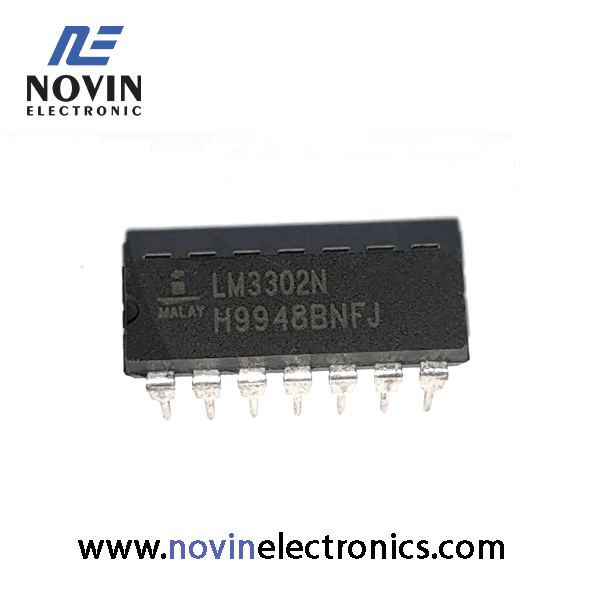

• package: DIP-14
• Brand : INTERSIL
Operation from Single or Dual Supplies
Common Mode Input Voltage Range to GND
Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS
Differential Input Voltage Range Equal to the Supply Voltage
Maximum Input Offset Voltage (VIO)
– CA139A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mV
– CA139, CA239, CA339. . . . . . . . . . . . . . . . . . . . . . 5mV
– LM2901. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7mV
– LM3302. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mV
Replacement for Industry Types 139, 239, 339, 139A, 2901, 3302
The devices in this series consist of four independent single or dual supply voltage comparators on a single monolithic substrate. The common mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators suitable for battery operation. These types were designed to directly interface with TTL and CMOS.
Type CA139A, has a lower input offset voltage than the CA139. Some of the SOIC parts are available on tape and reel (see Ordering Information table). Replace the M suffix in the part number with M96 when ordering (e.g., CA0239M96).
