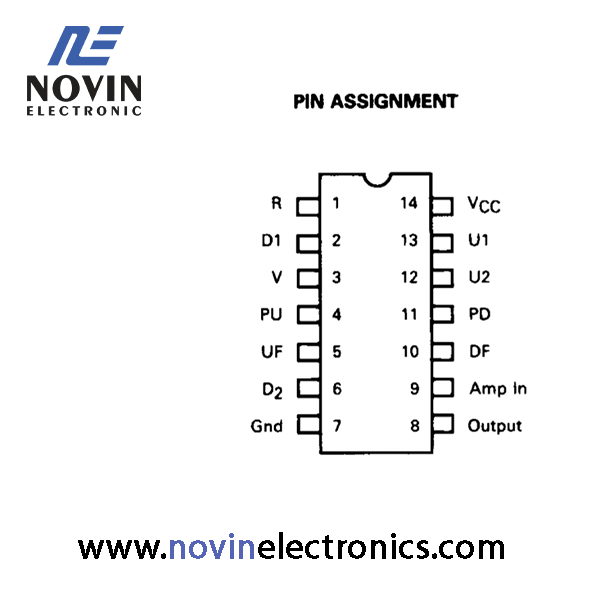

The MC4344/4044 consists of two digital phase detectors, a charge pump, and an amplifier. In combination with a voltage controlled multivibrator (such as the MC4324/4024 or MC1648), it is useful in a broad range of phase-locked loop applications. The circuit accepts TTL waveforms at the R and V inputs and generates an error voltage that is proportional to the frequency and/or phase difference of the input signals. Phase detector #1 is intended for use in systems requiring zero frequency and phase difference at lock. Phase detector #2 is used if quadrature lock is desired. Phase detector #2 can also be used to indicate that the main loop, utilizing phase detector #1, is out of lock.
دوست عزیز برای سفارش این قطعه از روش های زیر اقدام نمایید:
تهران -خ جمهوری - پاساژ امجد - طبقه زیر همکف - شماره 25
فروشگاه
درباره ما
تماس با ما
دیدگاهها
هیچ دیدگاهی برای این محصول نوشته نشده است.
