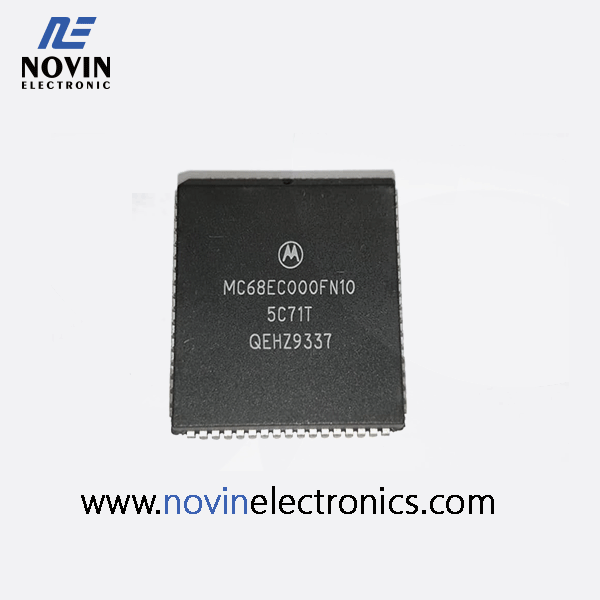

MC68EC000FN10

MC68EC000FN10

The four microprocessors are very similar to each other and all contain the following features:
• Sixteen 32-Bit Data and Address Registers

• 16-Mbyte Direct Addressing Range

• Program Counter

• 6 Instruction Types

• Operations on Five Main Data Types

• Memory-Mapped Input/Output (I/O)

• 14 Addressing Modes
Ehe following processors contain additional features:

• MC68HC001/MC68EC000/MC68SEC000 — Statically selectable 8- or 16-bit data bus
• MC68HC000/MC68EC000/MC68HC001/MC68SEC000 — Low power

The primary features of the MC68SEC000 embedded processor include the following:

• Direct Replacement for the MC68EC000

— Pin-for-pin compatibility with the MC68EC000 in the plastic QFP and TQFP packages

— Vast selection of existing third-party development tools for the MC68EC000 support the MC68SEC000 Software written for the MC68EC000 will run unchanged on the MC68SEC000
• Power Management Low-power HCMOS technology

— Static design allows for stopping the processor clock

— 3.3V or 5V operation

— Typical 0.5pA current consumption at 3.3V in sleep mode
• Software Strength

— Fully upward object-code compatible with other M68000 Family products

— M68000 architecture allows effective assembly code with a C compiler
• Upgrade

— Fully upward code-compatible with higher performance 680×0 and 68300 Family members

— ColdFire code-compatible with minor modifications
