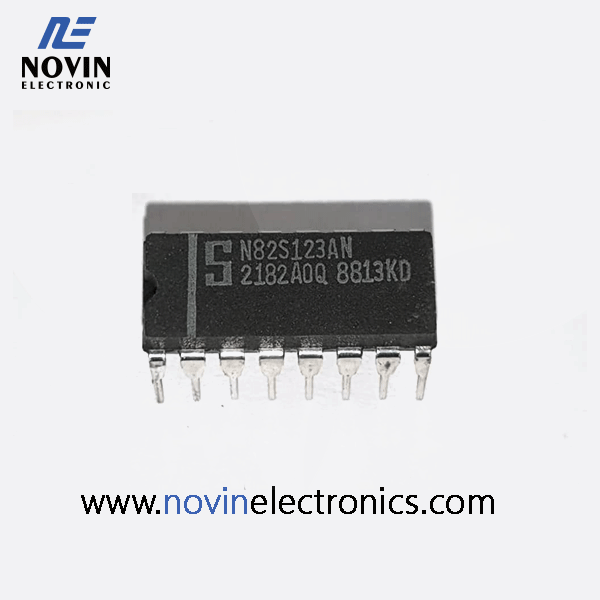

N82S123AN

N82S123AN

The 82S23 and 82S123 are field programmable, which means that custom patterns are immediately available by following the Signetics Generic I fusing procedure. The 82S23 and 82S123 devices are supplied with all outputs at logical Low. Outputs are programmed to a logic High level at any specified address by fusing a Ni-Cr link matrix. These devices include on-chip decoding and 1 Chip Enable input for memory expansion. They feature either Open Collector or 3-Stale outputs for optimization of word expansion in bused organizations. Ordering Information can be found on the following page. The 82S23 and 82S123 devices are also processed to military requirements for operation over the military temperature range. For specifications and ordering information, consult the Signetics Military Data Handbook.

جهت دانلود دیتاشیت N82S123AN بر روی PDF زیر کلیک کنید.
