● LOW NOISE: 3nV/√Hz
● WIDE BANDWIDTH:
OPA227: 8MHz, 2.3V/μs OPA228: 33MHz, 10V/μs
● SETTLING TIME: 5μs
(significant improvement over OP-27)
● HIGH CMRR: 138dB
● HIGH OPEN-LOOP GAIN: 160dB
● LOW INPUT BIAS CURRENT: 10nA max
● LOW OFFSET VOLTAGE: 75μV max
● WIDE SUPPLY RANGE: ±2.5V to ±18V
● OPA227 REPLACES OP-27, LT1007, MAX427
● OPA228 REPLACES OP-37, LT1037, MAX437
● SINGLE, DUAL, AND QUAD VERSIONS
The OPA227 and OPA228 series op amps combine low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both ac and preci- sion dc performance.
The OPA227 is unity-gain stable and features high slew rate (2.3V/μs) and wide bandwidth (8MHz). The OPA228 is opti- mized for closed-loop gains of 5 or greater, and offers higher speed with a slew rate of 10V/μs and a bandwidth of 33MHz.
The OPA227 and OPA228 series op amps are ideal for professional audio equipment. In addition, low quiescent current and low cost make them ideal for portable applica- tions requiring high precision.
The OP A227 and OP A228 series op amps are pin-for-pin replacements for the industry standard OP-27 and OP-37 with substantial improvements across the board. The dual and quad versions are available for space savings and per- channel cost reduction.

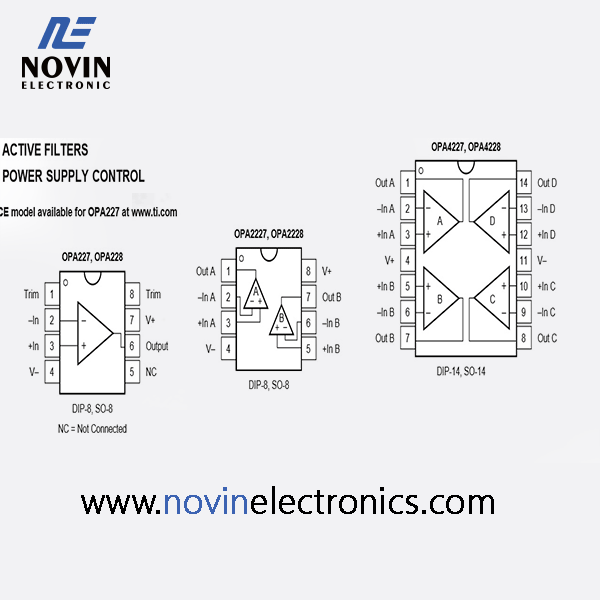

The OPA227, OPA228, OPA2227, and OPA2228 are available in DIP-8 and SO-8 packages. The OPA4227 and OPA4228 are available in DIP-14 and SO-14 packages with standard pin configurations. Operation is specified from –40°C to +85°C.
