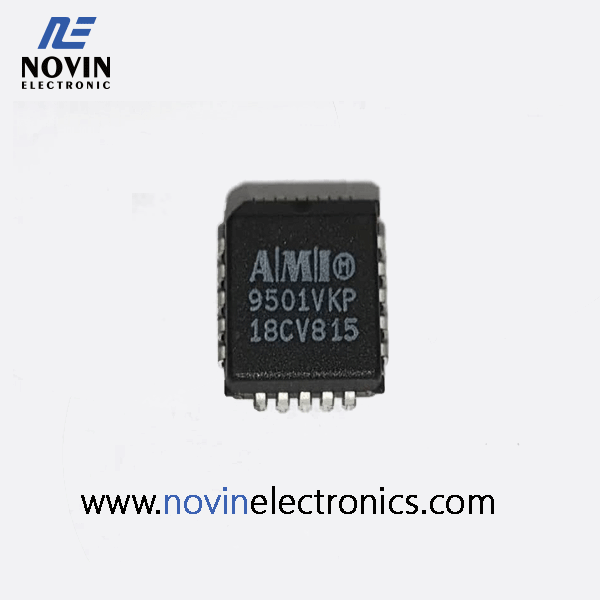

package : PLCC-20
Advanced CMOS EEPROM’ Technology
Low Power Consumption
• 30mA Standby + 0.5mA/MHz Max (for 25ns)
• 90mA Standby + 0.5mA/MHz Max (for all other speeds) High Performance
• tPD = 5ns, 7.5ns, 1Ons, 15ns, 25ns Max
Reprogrammability
• 100% factory tested
• Cost effective “windowless” package
• Erases and programs in seconds
• Adds convenience, reduces field retrofit and development cost Foolproof Design Security
• Prevents unauthorized reading or copying of design Architectural Flexibility

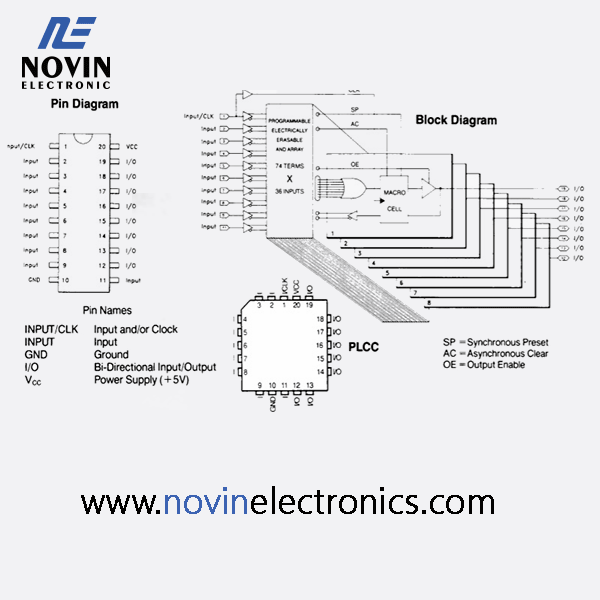

• 74 Product Term X 36 Input array
• Up to 18 Inputs and 8 I/O pins
• Independently configurable I/O macrocells: polarity, register, combinational, bi-directional
• Synchronous preset, asynchronous clear
• Independent output enables Application Versatility
• Replaces SSI/MSI logic
• Emulates bipolar PAL, GAO, and EPLDs
• Simplifies inventory control
• Allows new design possibilities Development/Programmer Support
• PC-based development tools from AMI
• Third-party development tools and programmer support
General Description The AMI PEEL18CV8 is a CMOS Programmable Electrically Erasable Logic device that provides a high-performance, low-power, reprogrammable, and architecturally flexible alternative to conventional programmable logic devices (PLDs). Designed in advanced CMOS EEPROM technology, the performance of the PEEL18CV8 rivals speed parameters of standard bipolar PLDs with a dramatic improvement in power consumption. The electrically erasable reprogrammable technology of the PEEL18CV8 not only reduces development and field retrofit costs, but also enhances testability, enabling AMI to ensure 100% field programmability and function. Packaged in a cost effective ”windowless” 20-pin DIP, the flexible architecture of the PEEL18CV8 allows for replacement of standard SSI/MSI logic circuitry or pin-out compatible emulation of 20-pin bipolar PAC devices, GALS devices, and EPLDs. In addition, over a hundred new logic configurations, not possible with earlier generation PLDs, can be implemented. Development and programming support of the PEEL18CV8 is provided by popular third-party PC-based development tools and stand alone programmers. AMI also offers development tools specifically for the PEEL18CV8 and other PEEL devices.
