TNY176PN

جهت استعلام قیمت با 66712131 تماس بگیرید

650 V rating optimized for non-active PFC applications
Simple ON/OFF control, no loop compensation needed
Selectable current limit through BP/M capacitor value
- Higher current limit extends peak power or, in open frame applications, maximum continuous power
- Lower current limit improves efficiency in enclosed adapters/ chargers
- Allows optimum TinySwitch-LT choice by swapping devices with no other circuit redesign
Tight I2f parameter tolerance reduces system cost
- Maximizes MOSFET and magnetics power delivery
- Minimizes max overload power, reducing cost oftransformer, primary clamp & secondary components
ON-time extension – extends low-line regulation range/hold-up timeto reduce input bulk capacitance
Self-biased: no bias winding or bias components
Frequency jittering reduces EMI filter costs
Pin-out simplifies heat sinking to the PCB
SOURCE pins are electrically quiet for low EMIEnhanced Safety and Reliability Features

Accurate hysteretic thermal shutdown protection with automatic recovery eliminates need for manual reset
Auto-restart delivers <3% of maximum power in short-circuit and open loop fault conditions
Output overvoltage shutdown with optional Zener
Very low component count enhances reliability and enablessingle-sided printed circuit board layout
High bandwidth provides fast turn on with no overshoot andexcellent transient load response
Extended creepage between DRAIN and all other pins improves fieldreliability
EcoSmartTM– Extremely Energy Efficient

Easily meets all global energy efficiency regulations
No-load <150 mW at 265 VAC without bias winding,<50 mW with bias winding
ON/OFF control provides constant efficiency down to very light loads

– ideal for mandatory CEC regulations

شناسه محصول: TNY176PN دسته: همه آی سی ها برچسب: TNY176PN

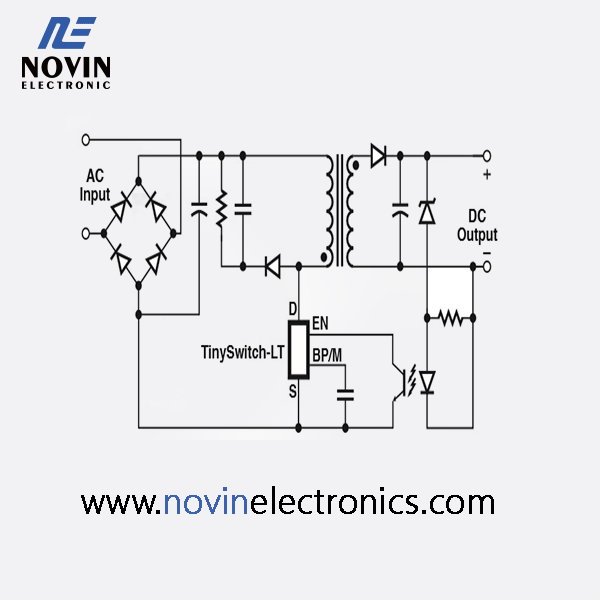

TinySwitchTM-LT incorporates a 650 V power MOSFET, oscillator, high-voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.

جهت دانلود دیتاشیتTNY176PNبر روی PDF زیر کلیک کنید.
