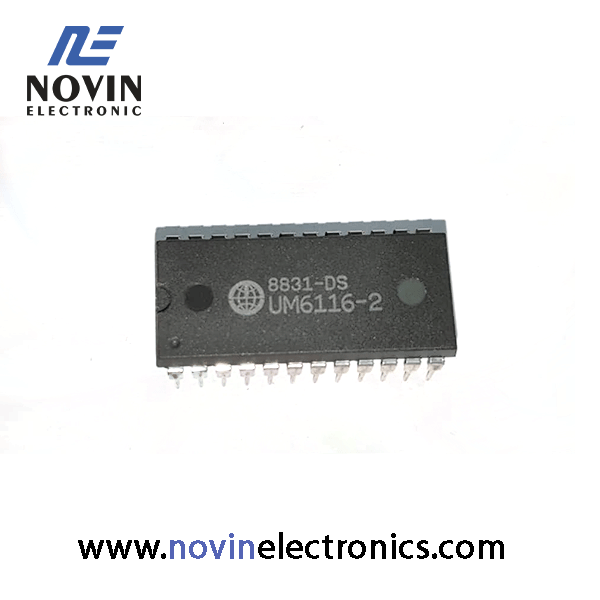

UM6116-2

UM6116-2

-package: DIP-24

-Brand : UMC

■ Single +5 volt power supply
■ Access times: 901120 ns (max.)
■ Current: for UM6116-31-31 Operating: 100 mA (max.) Standby: 100 pA (max.) for UM6116-2/-2T Operating: 100 mA (max.) Standby: 50µA (max.) for UM6116-3L/-2L/-3LT/-2LT Operating: 50 mA (max.) Standby: 1 pA (max.)
■ Fully static operation, no clock or refreshing required
■ Directly TTL compatible: All inputs and outputs
■ Common I/O using three-state output
■ Pin compatible with standard 16K EPROM/Mask ROM
■ UM6116-2/-3 is the standard version of UM6116- 2/-3 series
■ UM6116-2L/-3L is the low power version of UM6116-21-3 series
■ UM6116-2T/-3T is the wide temperature version of UM6116-21-3 series
■ UM6116-2LT/-3LT is the low power, wide temperature version of UM6116-21-3 series
■ Available in 24 pin DIP, SOP, or Skinny DIP packages (See ordering information)
