AMD)N80C186)

N80C186

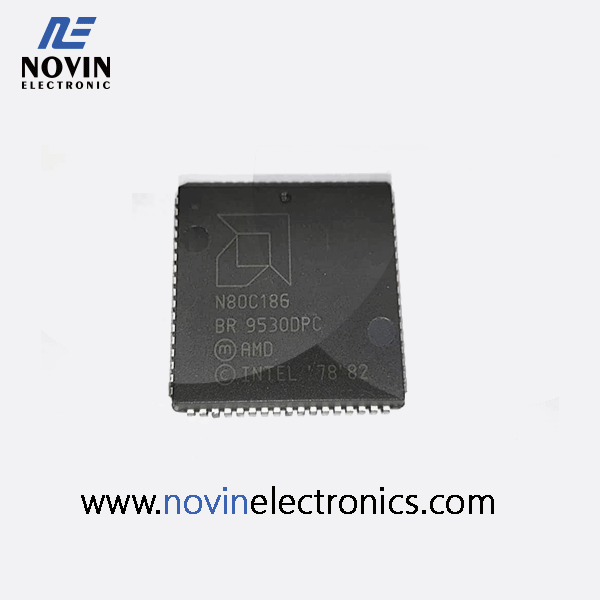

package : PLCC-68

■ Operation Modes Include

—Enhanced mode with

• DRAM Refresh Control Unit

• Power-save mode

—Compatible Mode

• NMOS 80186/80188 pin-for-pin replacement for non-numerics applications

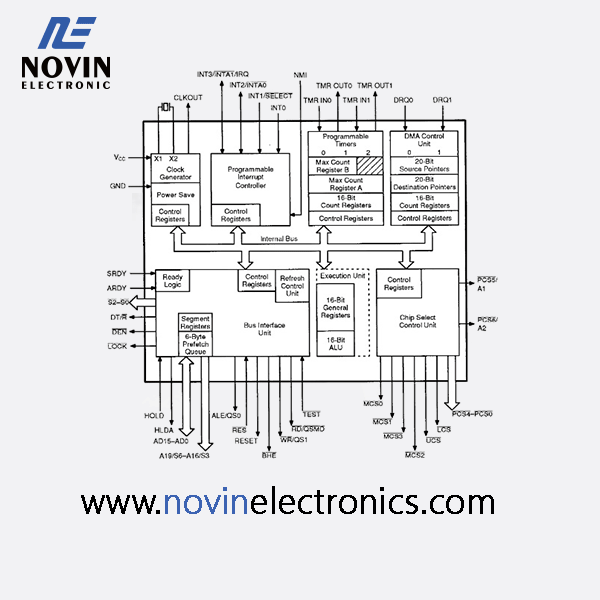

■ Integrated Feature Set

—Enhanced 80086/C88 CPU

—Clock generator

—Two independent DMA channels

—Programmable interrupt controller

—Three programmable 16-bit timers

—Dynamic RAM refresh control unit Programmable memory and peripheral chip select logic

—Programmable wait-state generator

—Local bus controller

—Power-save mode

—System-level testing support (high-impedance test mode)

■ Available In 25-MHz, 20-MHz, 16-MHz, 12.5-MHz, and 10-MHz versions

■ Direct addressing capability to 1-Mbyte of memory and 64-Kbyte I!0

■ Fully static CMOS design

■ Completely object code compatible with all existing 8086’8088 software. Has ten additional instructions over 8086,8088.

■ Complete system development

—There are many vendors making support tools for the 80C186/C188 Software tools for the NMOS 80186/80188 can be used for the 80C186/C188 as can the NMOS emulators

■ Available In
—68-Pin Plastic Leaded Chip Carrier (PLCC)

—80-Pin Thin Quad Flat Pack (TQFP)

—80-Pin Plastic Quad Flat Pack (PQFP)

• In Trimmed/Formed Configuration
