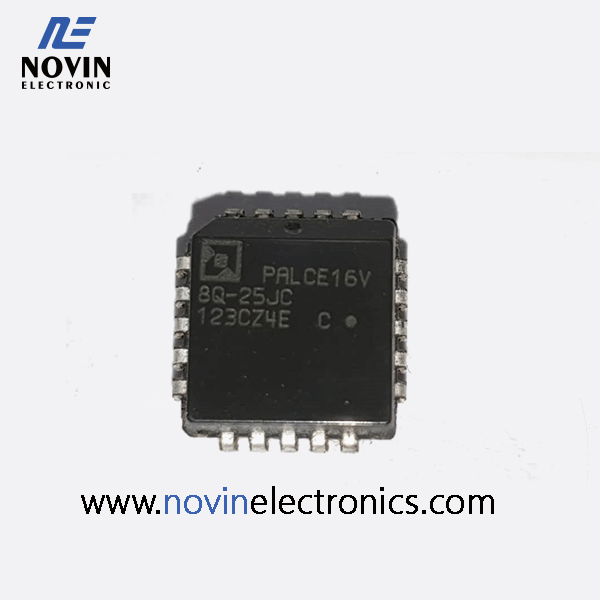

package : PLCC-20
■ Pin, function and fuse-map compatible with all 20-pin GAL devices
■ Electrically erasable CMOS technology provides reconfigurable logic and full testability
■ High-speed CMOS technology
— 5 ns propagation delay for “-5” version
— 7.5 ns propagation delay for ‘-7″ version
■ Direct plug-In replacement for the PAL16R8 series and most of the PALI OH8 series
■ Outputs programmable as registered or combinatorial in any combination
■ Programmable output polarity
■ Programmable enable/disable control
■ Preloadable output registers for testability
■ Automatic register reset on power up
■ Cost-effective 20-pin plastic DIP, PLCC, and SOIC packages
■ Extensive third-party software and programmer support through FuslonPLD partners
■ Fully tested for 100% programming and functional yields and high reliability
■ 5 ns version utilizes a split leadframe for improved performance
GENERAL DESCRIPTION The PALCE16V8 is an advanced PAL device built with low-power, high-speed, electrically-erasable CMOS technology. It is functionally compatible with all 20-pin GAL devices. The macrocolls provide a universal device architecture. The PALCE16V8 will directly replace the PAL16R8 and PALI 01-18 series devices, with the excep-tion of the PAL16C1.

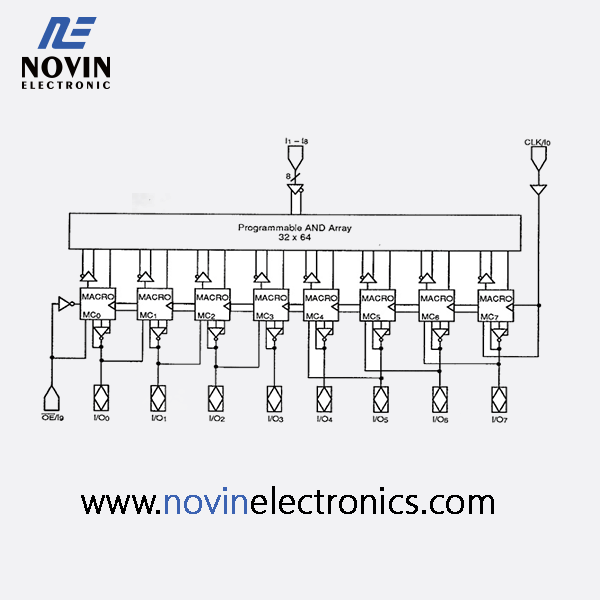

The PALCE16V8 utilizes the familiar sum-of-products (AND/OR) architecture that allows users to implement complex logic functions easily and efficiently. Multiple levels of combinatorial logic can always be reduced to sum-of-products form, taking advantage of the very wide input gates available in PAL devices. The equa-tions are programmed into the device through floating-gate cells in the AND logic array that can be erased electrically. The fixed OR array allows up to eight data product terms per output for logic functions. The sum of these products feeds the output macrocell. Each macrocet1 can be pro-gram med as registered or combinatorial with an active-high or active-low output. Tho output configuration Is determined by two global bits and one local bit controlling four multiplexers in each macrocell. AMD’s FusionPLD program allows PALCE1 6V8 de-signs to be implemented using a wide variety of popular industry-standard design tools. By working closely with the FusionPLD partners, AM D certifies that the tools provide accurate, quality support. By ensuring that third-party tools are available, costs are lowered because a designer does not have to buy a complete set of new tools for each device. The FusionPLD program also greatly reduces design time since a designer can use a tool that is already installed and familiar. Please refer to the PLD Software Reference Guide for certified devel-opment systems and the Programmer Reference Guide for approved programmers.
