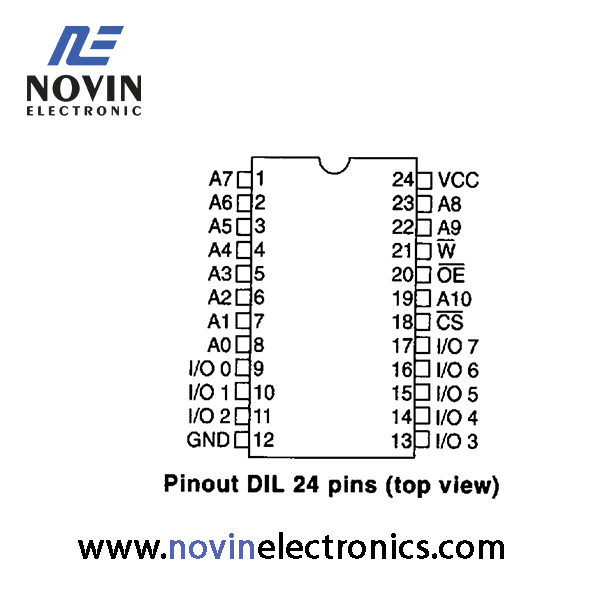

HM3-6116L-5

The HM 6116 is a very low power CMOS static RAM organized as 2048 x 8 bits. It is manufactured using the MHS high performance CMOS technology. 120 ns access time for commercial temperature range is available with a maximum power consumption of only 385 mW. The HM 6116 features fully static operation requiring no external clocks or timing strobes. Thanks to the special input buffer “gated inputs”, the circuit remains in stand by mode when the CS goes to an intermediate level (VIH). Easy memory expansion is provided by an active low chip select (CS), an active low output enable (OE) and three state drivers. The HM 6116 are TTL compatible and operate from single 5 V supply thus simplifying system design. The HM 6116 is 100 % processed following the test methods of MIL STD 883C and/or ESA/SCC 9000, making it ideally suitable for military/space applications that demand superior levels of performance and reliability.
