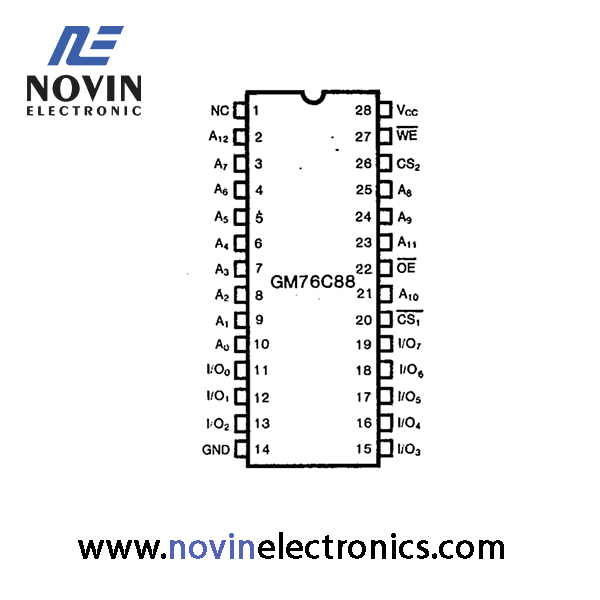

-package: DIP-28
-Brand : GOLDSTAR
• 8,192 x 8 organization
• High Speed: Fast Access and Cycle Time 701851100ns (max.)
• Low Power Standby and LoW Power Operation
• Completely Static RAM: No Clock or Timing Strobe Required
• Common HO (Three-State Output)
• Directly TTL Compatible: All Inputs and Outputs
• Single + 5V Operation ( ± 10%)
• Standard 28 DIP (600 m11)128 SOP (330 mil)
The GM76C88 is 65,536 bit stale random access memory organized as 8,192 words by 8 bits using CMOS technology, and operated from a single 5V supply. Advanc-ed circuit techniques provide both high speed and low power features with a maximum operating current of 80mA and minimum cycle time of 70/85/10Ons. The combina-tion of speed.
•optimized circuitry results in a very high-speed memory device. Thus the GM76C88 is suitable for use in various microprocessor application systems where high speed are required. The GM76C88 is offered in 28 pin DIP.
