MB81C79A-35

MB81C79A-35

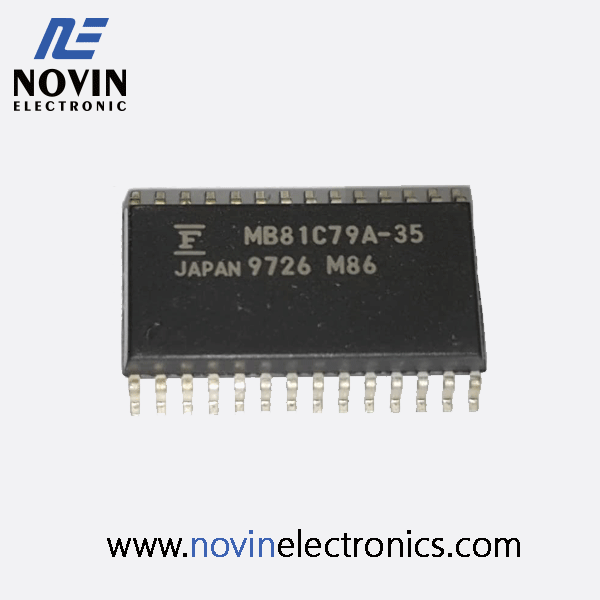

package:SOP-28

FUJISTO

• Organization: 8,192 words x 9 bits
• Static operation: no clocks or refresh required
• Access time: t_AA t_Acs, – 35 ns max. (MB81C79A-35)

tof – 45 ns max. (MB81C79A-45)

• Low power consumption: 495 mW max. (Operating) 138 mW max. (Standby, TTL level) 83 mW max.
• (Standby, CMOS level)

• Single +5 V power supply ±10% tolerance
• TTL compatible inputs and outputs
• Three-state outputs with OR-tie capacity
• Chip select for simplified memory expansion, automatic power down
• Electrostatic protection for all inputs and outputs

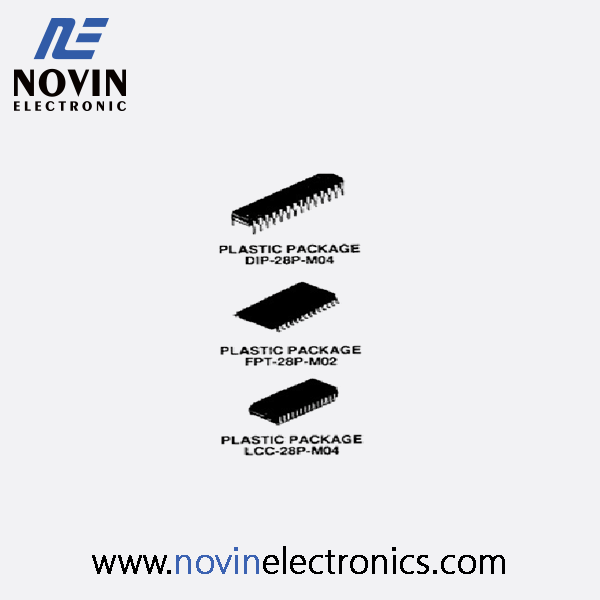

• Standard 28-pin Plastic Packages: Skinny DIP (300 mil) MB81C79A-xxPSK

• SOP               MB81C79A-xxPF

• SOJ               MB81C79A-xxPJ

• Standard 32-pad Ceramic Package:
• LCC (metal seal) MB81C79A-CV
