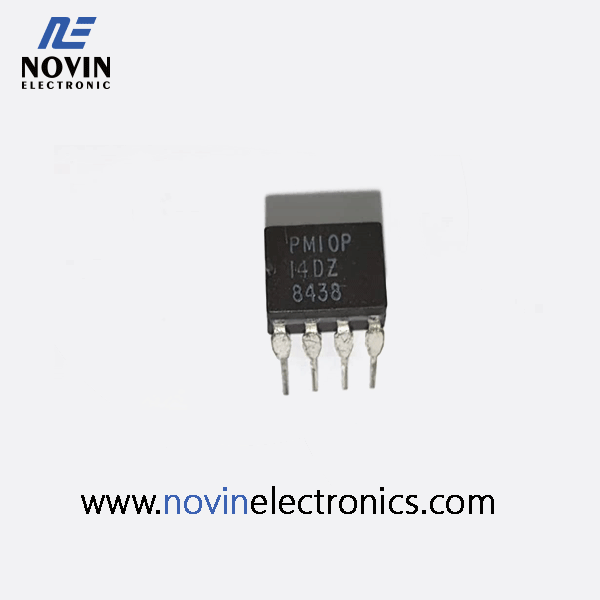

package:DIP-8
PMI
• Excellent DC Input Specifications
• Matched Vos and CMRR
• OP-14 Fits Standard 1458/1558 Sockets
• Internally Compensated
• Low Noise
• Low Drift
• Low Coat
• 0°C/ -70°C and -55°C/ 125°C Models
• Silicon-Nitride PassivatIon
• Models with MIL-STD-883 Class B Processing Available From Stock
• Available in Die Form
GENERAL DESCRIPTION The OP-04/0P-14 series of dual general-purpose operational amplifiers provides significant improvements over industry-. standard 747 and 1458/1558 (OP-14} types while maintaining pin-for-pin compatibility, ease of application, and low cost. Key specifications, such as Vos. los, I B, CMRR, PSRR and Avo, are guaranteed over the full operating temperature range. Precision Monolithics’ exclusive Silicon-Nitride “Triple Passivation” process reduces “popcorn noise”. A thermally-symmetrical input stage design provides low TCV05. TClos, and insensitivity to output load conditions. This series is ideal for upgrading existing designs where accuracy improve-ments are desired. For more stringent requirements, refer to the OP-200, OP-207, OP-220. or OP-221 dual•matched opera-tional amplifier data sheets.
