Ultralow Offset Voltage:
TA = +25 C: 10 V max
–55 C ≤ TA ≤ +125 C: 20 V max
Outstanding Offset Voltage Drift: 0.1 V/C max Excellent Open-Loop Gain and Gain Linearity:
12 V/V typ
CMRR: 130 dB min
PSRR: 120 dB min
Low Supply Current: 2.0 mA max
Fits Industry Standard Precision Op Amp Sockets (OP07/OP77)
The OP177 features the highest precision performance of any op amp currently available. Offset voltage of the OP177 is only 10 μV max at room temperature and 20 μV max over the full military temperature range of –55°C to +125°C. The ultralow VOS of the OP177, combines with its exceptional offset voltage drift (TCVOS) of 0.1 μV/°C max, to eliminate the need for external VOS adjustment and increases system accuracy over temperature.
The OP177’s open-loop gain of 12 V/μV is maintained over the full ±10 V output range. CMRR of 130 dB min, PSRR of
120 dB min, and maximum supply current of 2 mA are just a few examples of the excellent performance of this operational amplifier. The OP177’s combination of outstanding specifications insure accurate performance in high closed-loop gain applications.
Ultraprecision Operational Amplifier

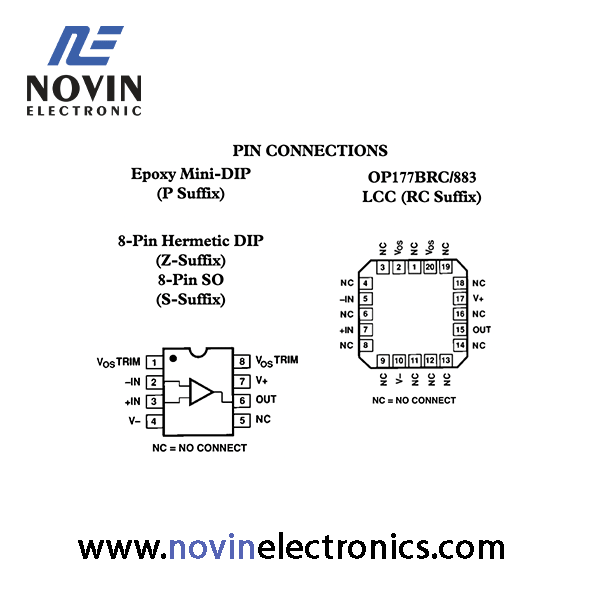

PIN CONNECTIONS
