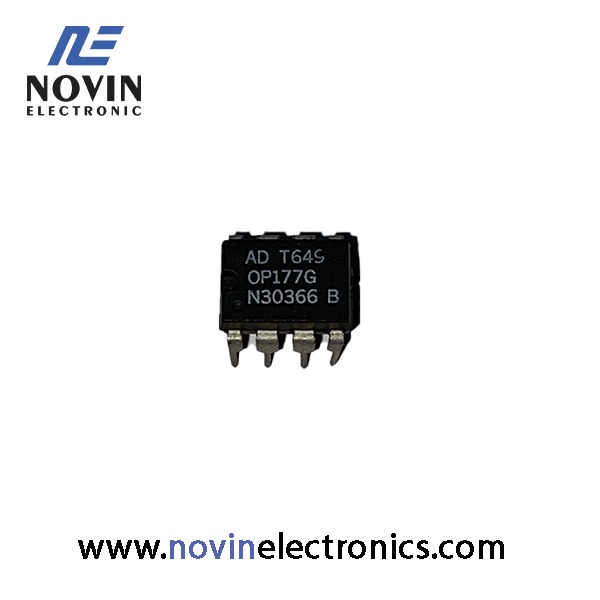

OP177G

The OP 177 features the highest precision performance of any op amp currently available. Offset voltage of the OP 177 is only 10 IAV max at room temperature and 20 IAV max over the full military temperature range of —55°C to +125°C. The ultralow Vos of the OP 177, combines with its exceptional offset voltage drift (TCV0s) of 0.1 µV/°C max, to eliminate the need for external Vos adjustment and increases system accuracy over temperature. The OP 177’s open-loop gain of 12 V/IAV is maintained over the full ± 10 V output range. CMRR of 130 dB min, PSRR of 120 dB min, and maximum supply current of 2 mA are just a few examples of the excellent performance of this operational amplifier. The OP 177’s combination of outstanding specifications insure accurate performance in high closed-loop gain applications.
