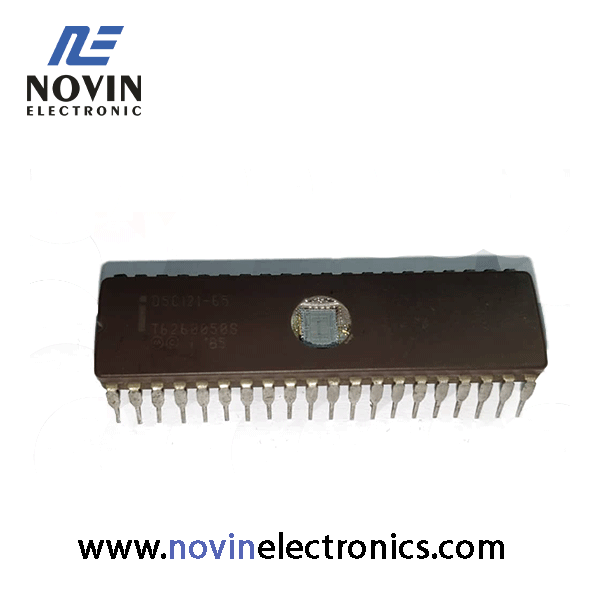

-package: DIP-40
-Brand : INTEL
■ High Performance LSI Semi-Custom Logic Replacement for Gate Arrays and Conventional Fixed Logic
■ EPROM Technology Based. UV Erasable
■ Programmable Macrocell and I/O Architecture; up to 36 Inputs or 24 Outputs, 28 Macrocells Including 4 Buried Registers
■ All Inputs are Latchable with a Programmable Latch Feature
■ High Speed tpD (Max) 50 ns Operating Frequency (Max) 20 MHz
■ Low Power; 15 mW Typical Standby Dissipation
■ Typical Usable Gate Count of 1200 2-Input NAND Gates
The Intel 5C121 H-EPLD (H-series Erasable Programmable Logic Device) is an LSI logic circuit that is user customizable through programming. This device can be used to replace gate arrays, multiple programmable logic arrays and LS TTL and 74HC CMOS SSI and MSI logic devices. The logic capacity of the 5C121 is typically equal to 1200 two-input NAND gates.
